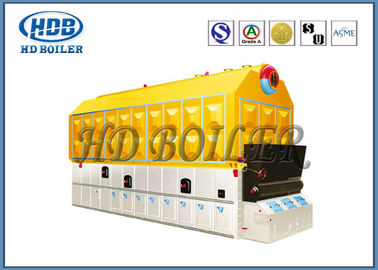

Biomass Fired Wood Burning Steam Boiler Fire / Water Tube High Pressure

Biomass Fired Wood Burning Steam Boiler Fire / Water Tube High Pressure

    • Biomass Fired Wood Burning Steam Boiler Fire / Water Tube High Pressure
    • Biomass Fired Wood Burning Steam Boiler Fire / Water Tube High Pressure
    • Biomass Fired Wood Burning Steam Boiler Fire / Water Tube High Pressure
    • Biomass Fired Wood Burning Steam Boiler Fire / Water Tube High Pressure
  • Biomass Fired Wood Burning Steam Boiler Fire / Water Tube High Pressure

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: HD Boiler
    گواهی: ISO9001,ASME,Grade A,SGS,EN
    Model Number: Biomass Boiler

    پرداخت:

    Minimum Order Quantity: 1Set
    قیمت: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30-90 Days
    Payment Terms: L/C, T/T, Western Union,
    Supply Ability: 100 Ton/Tons per Month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Condition: New Structure: Fire/Water Tube
    Fuel: Biological Type: Natural Circulation
    Pressure: Low/High Pressure Range of Applications: Industrial
    Specification: Customized Manufacturing Level: A
    Surface Treatment: Painted Output: Hot Water/Steam

    Improve thermal efficiency Biomass Fuel Boiler Natural circulation boiler small footprint





    Product Description


    Biomass boilers are very similar to conventional gas boilers that you will be familiar with, providing you with space heating and hot water for the entire home, but instead of using gas (or oil) to produce the heat, they combust sustainable source such as straw, rice bran, sawdust, bark, peanut shells, Stick, Miscanthus, Wood shavings, etc.



    Performance advantages


    1. The dense drainage cooling tube or membrane wall structure of radiation heat transfer segment, the convective heat transfer segment S-type multibackhaul heat exchanger tail arrangement of efficient fin economizer heat exchanger, high thermal efficiency.

    2. Boiler quality insulation materials and special construction technology, less heat loss, the exhaust gas temperature is low, the high thermal efficiency of the boiler.

    3. Heightening grate combustion chamber, the layout of the combustion of secondary air, fuel combustion evenly and high combustion efficiency.

    4. Arch special design to grate, grate divided the warehouse into the wind, independent adjustment of air volume, fuel adaptability.

    5. Heating surface arrangement is adequate and reasonable, the boiler temperature fast start.



    Parameter



    Model SZL2-1.25-T
    SZL2-1.6-T
    SZL2-2.5-T
    SZL4-1.25-T
    SZL4-1.6-T
    SZL4-2.5-T
    SZL6-1.25-T
    SZL6-1.6-T
    SZL6-2.5-T
    SZL8-1.25-T
    SZL8-1.6-T
    SZL8-2.5-T
    SZL10-1.25-T
    SZL10-1.6-T
    SZL10-2.5-T
    SZL15-1.25-T
    SZL15-1.6-T
    SZL15-2.5-T
    SZL20-1.25-T
    SZL20-1.6-T
    SZL20-2.5-T
    Rated evaporation capacity(t/h) 2 4 6 8 10 15 20
    Maximum weight of shiooingpart(MPa) 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5
    Rated steam temperature(℃) 193/204/226 193/204/226 193/204/226 193/204/226 193/204/226 193/204/226 193/204/226
    water-suooly temperature(℃) 20 20 20 60 60 104 104
    Boiler(m2) 59.5 93.7 156 196.7 238.3 335.5 412
    Coal economizer(m2) 24.61 35.2 87.2 209.3 244.4 174.4 236
    Air preheater(m2) 82.4 181
    Effective area of grate(m2) 4 5.24 7.7 9.4 11.96 17.8 21.8
    Boiler volume(m3) 4.3 6.5 7.3 9.6 12.4 15 21
    Design efficiency(%) >82 >82 >83 >83 >84 >84 >84
    Applicable fuel Biomass Briquetting
    Maximum size of shipping part(m) 7×2.5×3.53 7.5×2.6×3.53 602×2.8×3.53 7.6×3.28×3.53 7.6×3.28×3.53 9.76×3.36×3.53 11×3.36×3.54
    Maximum weight of shipping part(t) 32 34 26 29 31 42 51.5
    Overall size of installation(m) 7.5×3.3×4.5 8×3.6×4.5 8.3×5.7×6.2 8.9×5.7×6.7 9.8×5.7×6.2 10.9×5.7×6.7 12×5.8×6.8
    Draught fan

    GY2-15

    3

    YX9-35

    8C 22

    GY6-1

    30

    GY10-1

    45

    GY10-15

    55

    Y5-47

    12D 75

    Y5-47

    12.4D 90

    Blower fan

    GG2-11

    3

    T4-72

    4.5A 7.5

    T4-72

    5A 11

    GG6-1

    7.5

    GG6-1

    7.5

    GG8-1

    11

    GG10-1

    18.5

    Overfire air blower fan(kw)

    9-26

    3.2A 1.5

    GG1-15

    3

    GG2-15

    5.5

    T4-72

    4A 7.5

    T4-72

    4.5A 7.5

    GG4-15

    15

    9-26

    8D 22

    Speed governor(kw)

    GL-5P

    0.37

    GL-5P

    0.37

    GL-10P

    0.75

    GL-16P

    1.1

    GL-16P

    1.1

    GL-20P

    1.5

    GL-20P

    1.5



    Biomass Fired Wood Burning Steam Boiler Fire / Water Tube High Pressure

    Energy Efficient and Environmentally Sustainable Biomass Boiler Green Retrofit Construction



    Certifications




    Environmental Friendly High Efficiency Coal Fired CFB Boiler and Utility Boiler with ISO Standard



    Company Information


    HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
