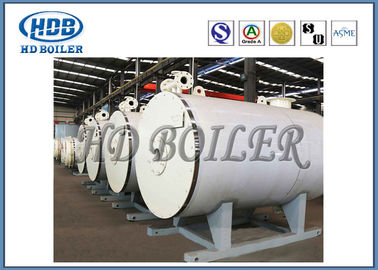

Horizontal Oil Fired Industrial Steam Generators , Atmospheric Pressure Hot Water Boiler

Horizontal Oil Fired Industrial Steam Generators , Atmospheric Pressure Hot Water Boiler

    • Horizontal Oil Fired Industrial Steam Generators , Atmospheric Pressure Hot Water Boiler
    • Horizontal Oil Fired Industrial Steam Generators , Atmospheric Pressure Hot Water Boiler
    • Horizontal Oil Fired Industrial Steam Generators , Atmospheric Pressure Hot Water Boiler
    • Horizontal Oil Fired Industrial Steam Generators , Atmospheric Pressure Hot Water Boiler
  • Horizontal Oil Fired Industrial Steam Generators , Atmospheric Pressure Hot Water Boiler

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: HD BOILER
    گواهی: ISO9001 , ASME , GradeA , SGS , EN ,TUV
    Model Number: CWNS

    پرداخت:

    Minimum Order Quantity: 1 Set
    قیمت: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 25 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 Sets / Month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Function: Steam Boilers Installation: Packaged Boiler
    Media: Steam Burning Style: Chamber Combustion Boiler
    Furnace Type: Corrugated Transport Package: Plywood Case
    Usage: Food,Beverage,Cuisine,Industrial Port: Shanghai

    Oil Gas Combine Marine Steam Generator Smoke Tube Small Capacity



    Product Description



    CWNS automatic oil(gas) fired atmospheric pressure hot water boiler adopts vertical/horizontal structure.Fuel is burning under micro-pressure,high temperature smoke in the funace to complete the process of radiation and convection heat after entering the atmosphere.It can be used for heating,living water and heat production to provide endless power.



    Technical Parameters



    Model CWNS

    0.58-85/60

    Y.Q

    0.7-85/60

    Y.Q

    1.05-85/60

    Y.Q

    1.4-85/60

    Y.Q

    1.75-85/60

    Y.Q

    2.1-85/60

    Y.Q

    2.8-85/60

    Y.Q

    Item Unit
    Rated power MW 0.58 0.7 1.05 1.4 1.75 2.1 2.8
    Total heat 104Kcal 50 60 90 120 150 180 240
    Rated Working Pressure MPa Atmospheric Pressure

    Fuel

    Consumption

    Light Diesel Kg/h 54 65 97.5 130 162 195 260
    Town gas Nm3/h 141.5 170 255 340 425 510 680
    Natural Gas Nm3/h 58.5 70 105 140 175 210 280
    LPG Nm3/h 25 30 45 60 75 90 120
    Water Inlet dia. DN 100 100 125 150 150 200 200
    Return pipe dia. DN 100 100 125 150 150 200 200
    Blowdown Valve Dia. DN 40 50 50 50 50 65 65
    Voltage V 380 380 380 380 380 380 380
    Overall Dimension mm

    2800×1550

    ×1790

    3030×1680

    ×1820

    3250×1760

    ×2960

    3580×1830

    ×2020

    4120×1900

    ×2120

    4320×1940

    ×2160

    4800×2000

    ×2280

    Net Weight Kg 1460 1980 2480 2980 3450

    3920

    5150



    Quatily Control



    • Fabrication area of 200,000 square meters

    • 150 Engineers

    • 600 Coded welders

    • 60 Licensed Inspectors(NDT Level-III instructors)

    • Class-A Licenses for Design and Manufacture Boiler

    • ISO 9001:2008 Quality System

    • ASME Certificate of Power Boilers

    • ASME 'S','U' and NB stamp authorization

    Horizontal Oil Fired Industrial Steam Generators , Atmospheric Pressure Hot Water Boiler



    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
