|Place of Origin:||Zhangjiagang,china|
|نام تجاری:||HD BOILER|
|گواهی:||ISO9001 , SGS , TUV , ASME , EN|
|Model Number:||Cyclone separator|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Iron Frame Package|
|Delivery Time:||30- 100 Days|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||100 sets per Month|
|Condition:||New||Type:||Fabric dust collector|
|Minimum particle size:||10 micron||Equipment resistance:||1200pa|
|Material:||Carbon Steel, Alloy Steel, Equivalent||Application:||Boiler System|

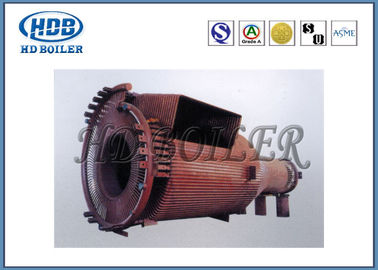

Circulating Fluidized Bed Vertical single cyclone separator for Industrial Boiler
A high speed rotating (air)flow is established within a cylindrical or conical container called a cyclone. Air flows in a spiral pattern, beginning at the top (wide end) of the cyclone and ending at the bottom (narrow) end before exiting the cyclone in a straight stream through the center of the cyclone and out the top. Larger (denser) particles in the rotating stream have too much inertia to follow the tight curve of the stream and strike the outside wall, falling then to the bottom of the cyclone where they can be removed. In a conical system, as the rotating flow moves towards the narrow end of the cyclone the rotational radius of the stream is reduced, separating smaller and smaller particles.
Cyclonic separation can eliminate particulates, such as dirt and dust, from a stream of air, gas or liquid. Engineers sometimes call these tornadic dust busters centrifugal separators. That's because at the root of these machines is something called centrifugal force.
1. Low capital cost.
2. Ability to operate at high temperatures.
3. Can handle liquid mists or dry materials.
4. Low maintenance requirements (no moving parts).
5. Small footprint - requires relatively small space.
Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
