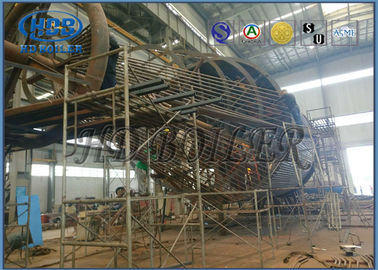

Horizontal Cyclone Separators Carbon Steel Dust Collection Circulating Fluidized Bed Technology

Horizontal Cyclone Separators Carbon Steel Dust Collection Circulating Fluidized Bed Technology

    • Horizontal Cyclone Separators Carbon Steel Dust Collection Circulating Fluidized Bed Technology
    • Horizontal Cyclone Separators Carbon Steel Dust Collection Circulating Fluidized Bed Technology
    • Horizontal Cyclone Separators Carbon Steel Dust Collection Circulating Fluidized Bed Technology
  • Horizontal Cyclone Separators Carbon Steel Dust Collection Circulating Fluidized Bed Technology

    جزئیات محصول:

    Place of Origin: CHINA
    نام تجاری: HD BOILER
    گواهی: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Cyclone Seprator

    پرداخت:

    Minimum Order Quantity: 1 Set
    قیمت: Negotiable
    Packaging Details: Iron Frame Package
    Delivery Time: 40 - 100 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10 sets per month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Manufacture Level: Grade A Condition: New
    Dimension: Customized Surface Treatment: Painted
    Application: Power boiler industry Port: Shanghai

    Horizontal and high efficiency Cyclone Separators carbon steel dust collection circulating fluidized bed technology



    Product Description

    Cyclonic separation is a method of removing particulates from an air, gas or liquid stream, without the use of filters, through vortex separation.
    When removing particulate matter from liquids, a hydrocyclone is used; while from gas, a gas cyclone is used.
    Rotational effects and gravity are used to separate mixtures of solids and fluids.
    The method can also be used to separate fine droplets of liquid from a gaseous stream.



    Operating Principles



    Although there are four commonly used cyclone separators, their operating principles based on that of the conventional cyclone, are very similar.
    In the conventional cyclone, the gas enters a cylinder tangentially, where it spins in a vortex as it proceeds down the cylinder.
    A cone section causes the vortex diameter to decrease until the gas reverses on it and spins up the center to the outlet pipe or vortex finder.
    A cone causes flow reversal to occur sooner and makes the cyclone more compact Dust particles are centrifuged toward the wall and collected by inertial impingement.
    The collected dust flows down in the gas boundary layer to the cone apex where it is discharged through an air lock or into a dust hopper serving one or more parallel cyclones .
    Although conventional cyclones can be built to larger diameter, they are commonly 600 to 1600 mm in diameter.



    Parameters



    The most important parameters of a cyclone as for any separating device are its collecting efficiency and the pressure drop across the unit.
    The collecting efficiency of a cyclone is defined as its ability to capture and retain dust particles whereas the pressure drop is the amount of power that the unit needs to do so.



    Flow Chart



    Horizontal Cyclone Separators Carbon Steel Dust Collection Circulating Fluidized Bed Technology



    Advantages



    The collected product remains dry and, normally useful.
    Low capital investment and maintenance costs in most applications.
    Very compact in most applications.
    Can be used under extreme processing conditions, in particular at high temperatures and pressures and with chemically aggressive feeds.
    No moving parts.
    Can be constructed from most any material suitable for the intended service including plate steel, casting metals, alloys, aluminum, plastics, ceramics, etc.
    Can be equipped with erosion or corrosion resistant or ‘particle repelling type liners.
    Can be fabricated from plate metal or, in the case of smaller units, cast in molds.
    Can, in some processes, handle sticky or tacky solids with proper liquid irrigation.
    Can separate either solids or liquid particulates; sometimes both in combination with proper design.
